Cutting the floor joists
I finally decided to jump in with both feet and start marking up the wood starting with the floor joists. However, trouble at step 1! The sawmill had cut the joists as 13 x 11cm rather than 13 x 10cm! Can you believe it? I think I will have to bodge a few things in the design!

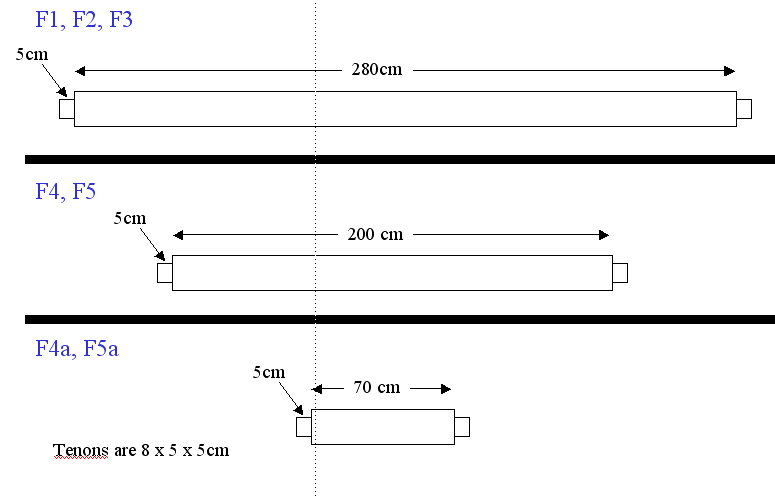

The floor Joists - F1, F2,F3,F4,F5,F4A,F5A.

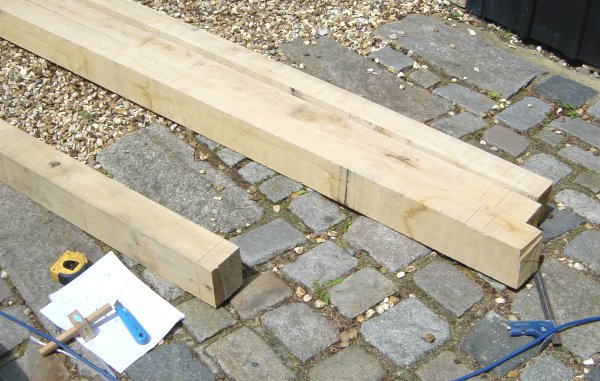

Marking out the floor joists

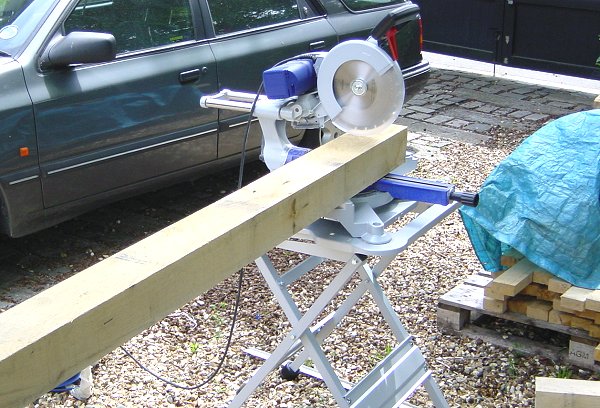

Cutting the floor joists to length

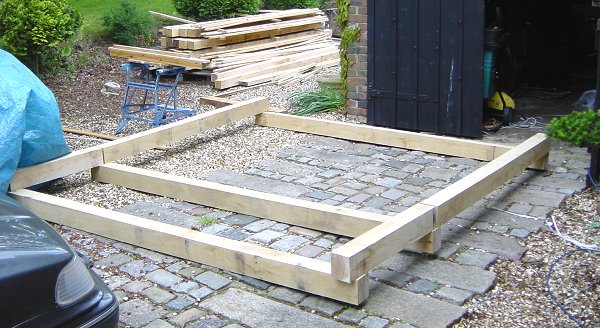

Nice to actually see what size the teahouse will be for the first time!
(These are the floor joists, F1, F2,F3,F4,F5, F4a & F5a)

The next job will be to cut the tenons using the crosscut saw and start on the corner uprights. Boy, isn't green oak heavy!

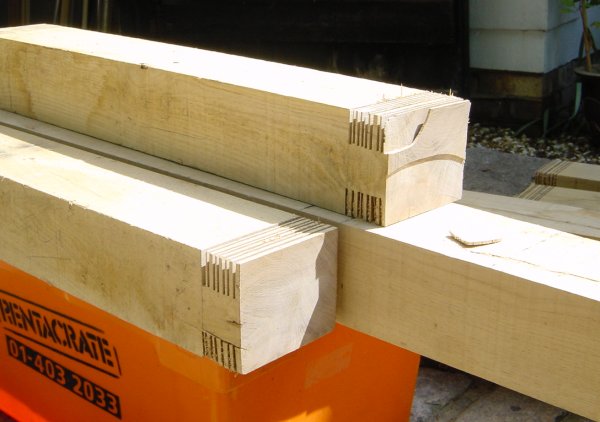

The floor joist tenons after cutting on the mitre saw

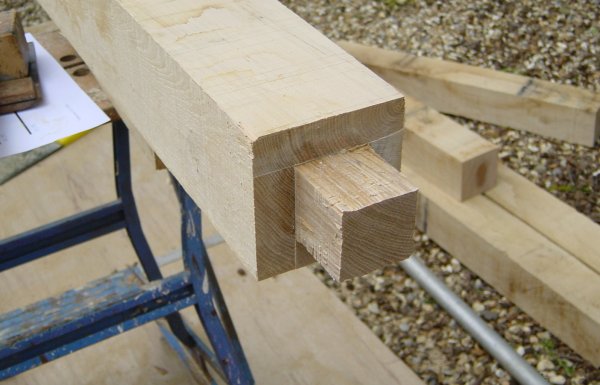

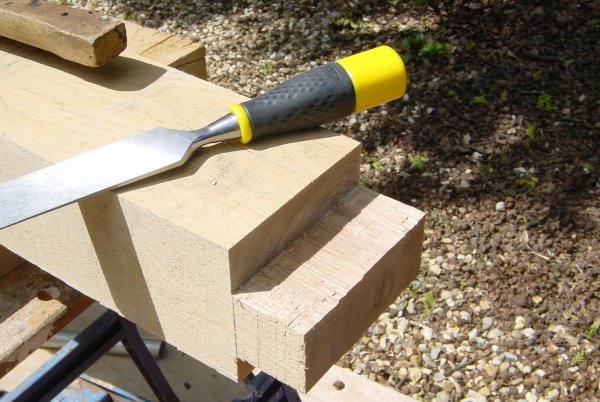

It's really easy cleaning the tenons with a 1.5" chisel!

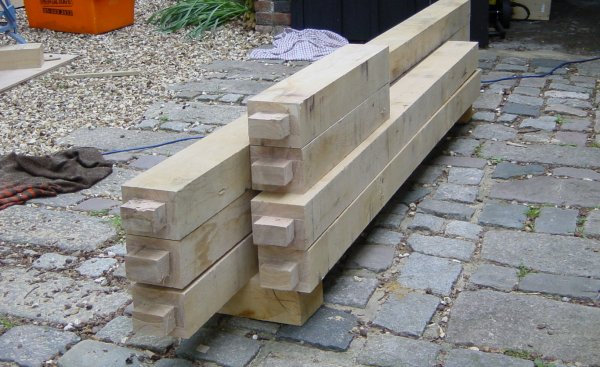

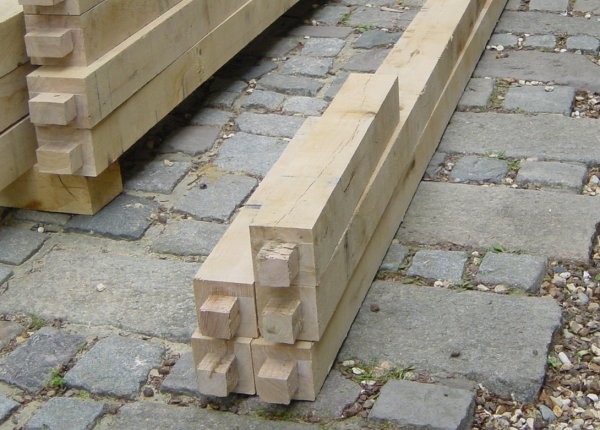

All the floor joist tenons are now cut (F1, F2,F3,F4,F5,F4A,F5A)

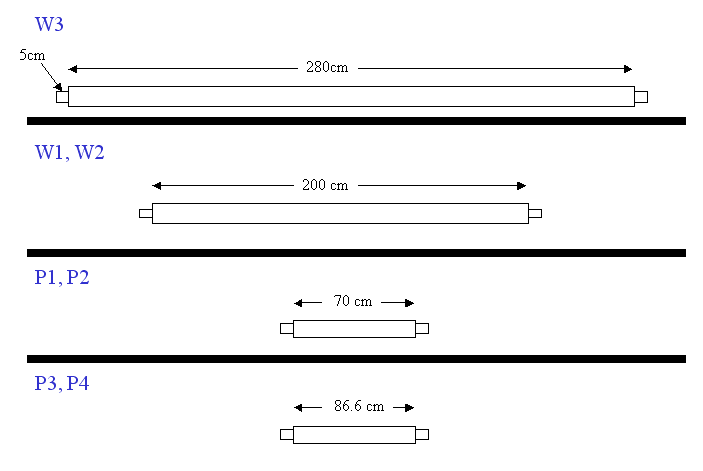

Shoji  lintels - W1,W2,W3, P1,P2
These are the tenons on the lintel pieces under the shojis
All the shoji lintel pieces complete to match the floor joists (W1,W2,W3, P1,P2
